ATOLLO

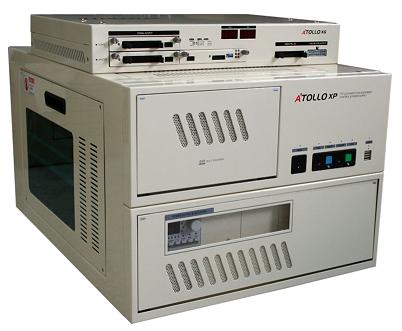

   Main Body ATOLLO
     445 mm(W) x 305 mm(D) x 75 mm(H) / 40 Kg

   SYSTEM Power
     AC INPUT            : AC 220V / 3.3KVA
     VDD Supply         : 0V ~ 36V (Programmable), 6A
                                   Turon On Rising VDD (0.4 ~ 4msec)
     VBL Supply          : 0V ~ 36V (Programmable), 24A
     High Power          : 48V 5A, 120V 3A, 240V 1.5A 380V 1A

   - Max. 4096 x 2048 resolution, Full HD (1920 x 1080p) resolution
   - LVDS, TMDS(OPT), TTL(OPT), DPTU(OPT) interface
   - Max. 12bit color depth
   - Support Vx1(8CH) dat mapping (opt)
   - Built-IN power supply & protection circuit for VDD & VBL supporting max. 85"
   - Voltage / Current measurement & display
   - Unlimited parameter setting / test pattern / LCM Type
   - Video file / BMP pattern / internal pattern
   - Scroll function with speed adjustable by frame frequency scale
   - Analog dimming & PWM dimming function
   - EDID Data interface : read / write and verification
   - Digital ficker (VDR) interface : read / write , I2C flicker function
   - Defect position by dot / pixel can be displayed by mouse or keyboard
   - Automatic IP(LIPS) control system
   - Automatic LVDS port T-con IC check function
   - LED backlight control interface
   - Ease of use & operation
