CHORUS

   - Support Max. 4096 x 2048 resolution, Full HD (1920 x 1080p)
   - Support LVDS default
   - Support Max 12 bit Color depth
   - Support Single / Dual / Quad
   - Support IP Board Control
   - VDD / VBL Current measurement & Display
   - Support HVS & on / off control
   - Individual port protection for each channel
   - Displaying aging time, power condition
   - Audible and visual alarm on fault
   - Easy and fast download of LCM data via RS232 communication port
   - High speed data transfer from PC by using WIFI
   - Data transfer to multi-equipment is possible by using broadcasting function WIFI
   - Support BMP patterns along with script patterns
   - IrDA is used for controlling various functions
   - Expanded number of pattern groups by using embedded PC
   - OS gives flexibility of control method

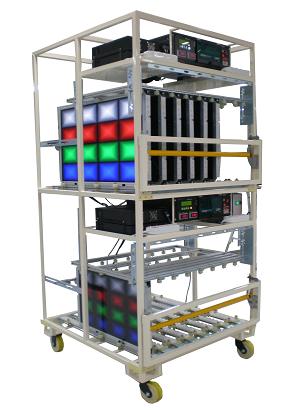

     CHORUS is a cart type aging system which is used in room type aging chamber.
     It has capacity of loading up to 16 LCM in size of 24~46 inch.
     It provides the test pattern signal, LCM driving power and control signal the LCM to be tested.
     Voltage and current of VDD / VBL power are detected during operation to activate protection function
     from abnormal power supply condition.
     This equipment has superior cost-performance and very suitable for big TV Size LCM aging in mass production.
     By adopting WIFI technology, high speed data transfer from PC is achieved.
     The WIFI technology enables transferring data to multi-equipments at the same time.
     Newly developed CLP pattern generator is adopted for improving the performance and easy of use.
     LCM pattern generator adopts WIFI technology to data transfer between PC.
     BMP pattern are also be support by using embedded PC and OS.
