TIBURON

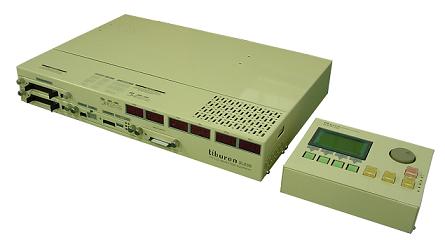

    Main Body TIBURON
      445 mm(W) x 305 mm(D) x 75 mm(H) / 0.8 Kg

    Accessory
      Remote Control Key Box(C1)   /  Key Box IF Cable  /   SD Memory  /
      LCD Module JIG (Option..)

    Data Transfer Method
      Download from PC

   -  Max 4096 x 2048 resolution, Full HD (1920 x 1080p)
   -  LVDS, TMDS(Option), TTL(Option) interface
   -  Max. 10Bit color depth
   -  Max. 256 LCM module parameter setting can be registered
   -  64 LCD module test pattern can be registered as 1 group
   -  BMP pattern and internal script pattern can be used
   -  scroll function can be applied to BMP pattern and scroll direction can be set for
       'up', 'down', 'left', 'right', 'start'
   -  Analog dimming & PWM dimming function
   -  EDID data interface : read / write and verification
   -  Digital Flicker (VDR) interface : read / write
   -  Defect coordinate can be displyed by mouse or keyboard
   -  Supply voltage & current display

      TIBURON is a portable pattern generator that can give assistance to LCM manufacturing for achieving the goal of  "High Productivity".
      It equipped with pattern generator and power supplies required for testing LCM nto only in the factory but also in maintenance field.
      It is compact in it's size for easy transportation by utilizing MICOM control.
      But, all functions required for testing TV size LCM can easily be programmed by using MICOM and OS.
