TINY

   Power section - WX30
     SYSTEM Power : AC Free
     VDD Supply      : DC 2.5V ~24V Max. 5A (0.1 Step), Max 120W
     VBL Supply       : DC 5V ~ 30V Max. 10A (0.1 Step), Max 300W

   Power section -WX20
     SYSTEM Power : AC Free
     VDD Supply      : DC 2.5V ~24V Max. 5A (0.1 Step), Max 120W
     VBL Supply       : DC 5V ~ 30V Max. 10A (0.1 Step), Max 300W

   - Max. 4096 x 2048 resolution, Full HD (1920 x 1080p) resolution
   - LVDS, TMDS(OPT), TTL(OPT), DPTU(OPT) interface
   - Max. 12bit color depth
   - Support Vx1(8CH) dat mapping (opt)
   - Built-IN power supply & protection circuit for VDD & VBL supporting max. 85"
   - Voltage / Current measurement & display
   - Unlimited parameter setting / test pattern / LCM Type
   - Video file / BMP pattern / internal pattern
   - Scroll function with speed adjustable by frame frequency scale
   - Analog dimming & PWM dimming function
   - EDID Data interface : read / write and verification
   - Digital ficker (VDR) interface : read / write , I2C flicker function
   - Defect position by dot / pixel can be displayed by mouse or keyboard
   - Automatic IP(LIPS) control system
   - Automatic LVDS port T-con IC check function
   - LED backlight control interface
   - Ease of use & operation

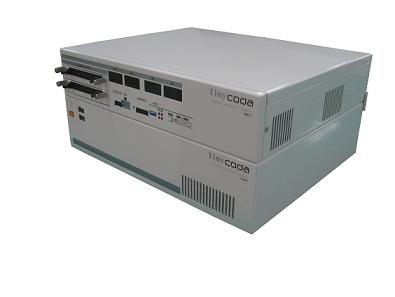

     Tiny  test pattern generator is new and built with supreme functions for inspecting next generation LCM.
     Tiny is an emblem of out 17 years of experience in LCM inspection technologies.
     It provides the test pattern signal, various kinds of power voltage and control signals required for inspecting latest types of
     LCM modules mainly used for Hi_End quality TV.
     It also equipped with various safety protection in order not only to protect the equipment it self but also LCM to be tested.
